Professional Driveways & Patios

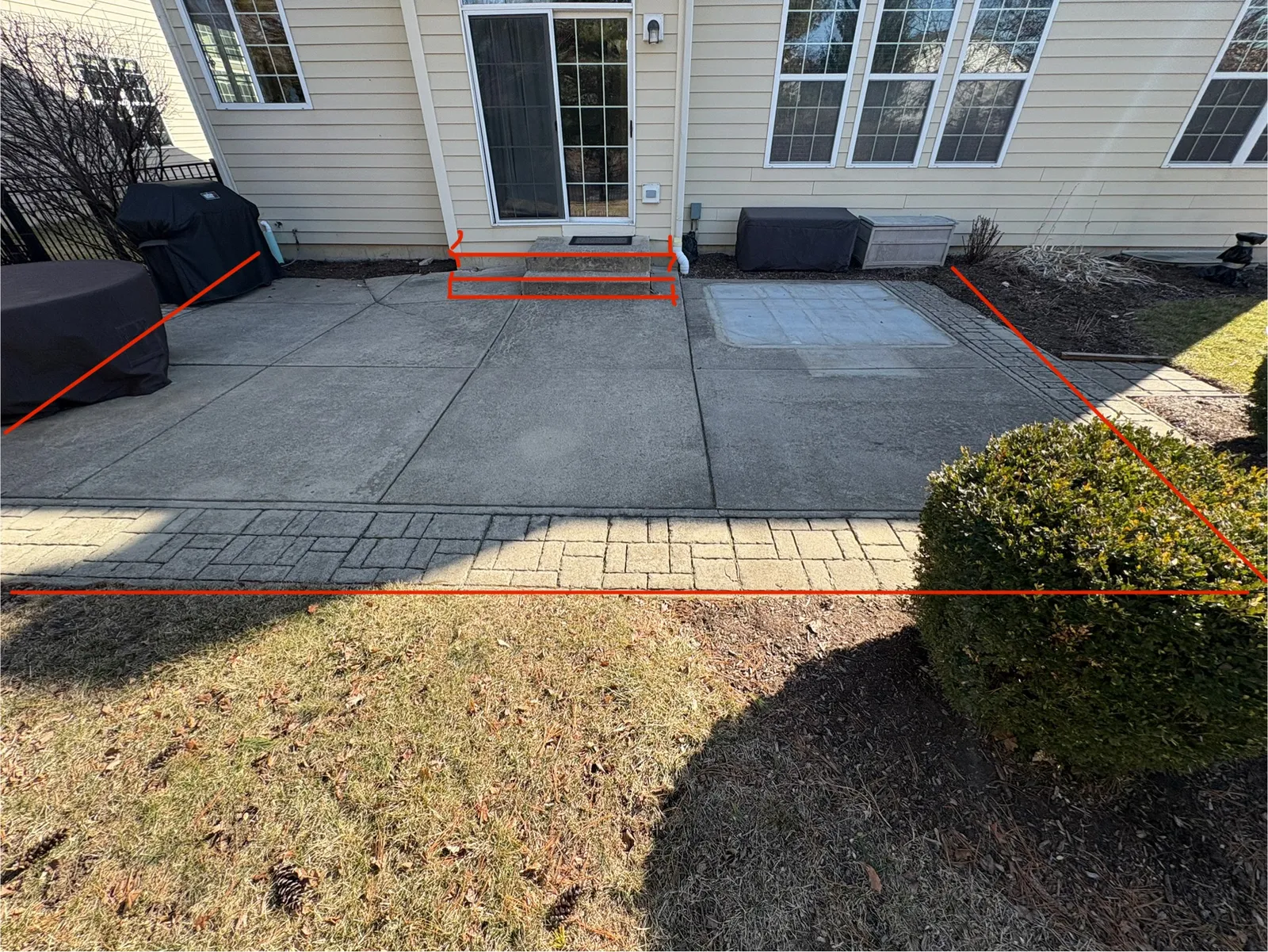

The number-one reason concrete driveways fail in McHenry and Lake County isn't bad concrete — it's bad sub-base preparation. Northern Illinois sits on heavy clay soil (CL-CH classification in the Unified Soil System) that expands when wet and contracts when dry. During spring thaw, this soil can heave upward with enough force to crack a 4-inch slab like a cracker. During summer drought, it shrinks and creates voids underneath your driveway, leading to the sunken, cracked sections homeowners dread.

At RCC, every driveway project in our region begins with removing the existing slab and excavating down to undisturbed soil — typically 8-10 inches below grade. We then install a minimum 4-inch layer of CA-6 crushed limestone, compacted in lifts with a plate compactor to 95% Modified Proctor density. This granular base does two critical things: it provides a stable, non-expansive platform that won't heave with clay soil movement, and it creates a drainage layer that channels water away from underneath your slab through the naturally porous aggregate.

The concrete itself matters just as much. We specify a minimum 4,000 PSI mix with 6% ± 1% air entrainment for every exterior pour. Those microscopic air bubbles aren't an imperfection — they're engineered relief valves that give freezing water room to expand without fracturing the concrete matrix. A driveway poured with non-air-entrained concrete in Crystal Lake or Woodstock will start surface-scaling within two winters. We also add synthetic macro-fiber reinforcement at 3 lbs per cubic yard, which bridges hairline cracks before they propagate into structural failures.

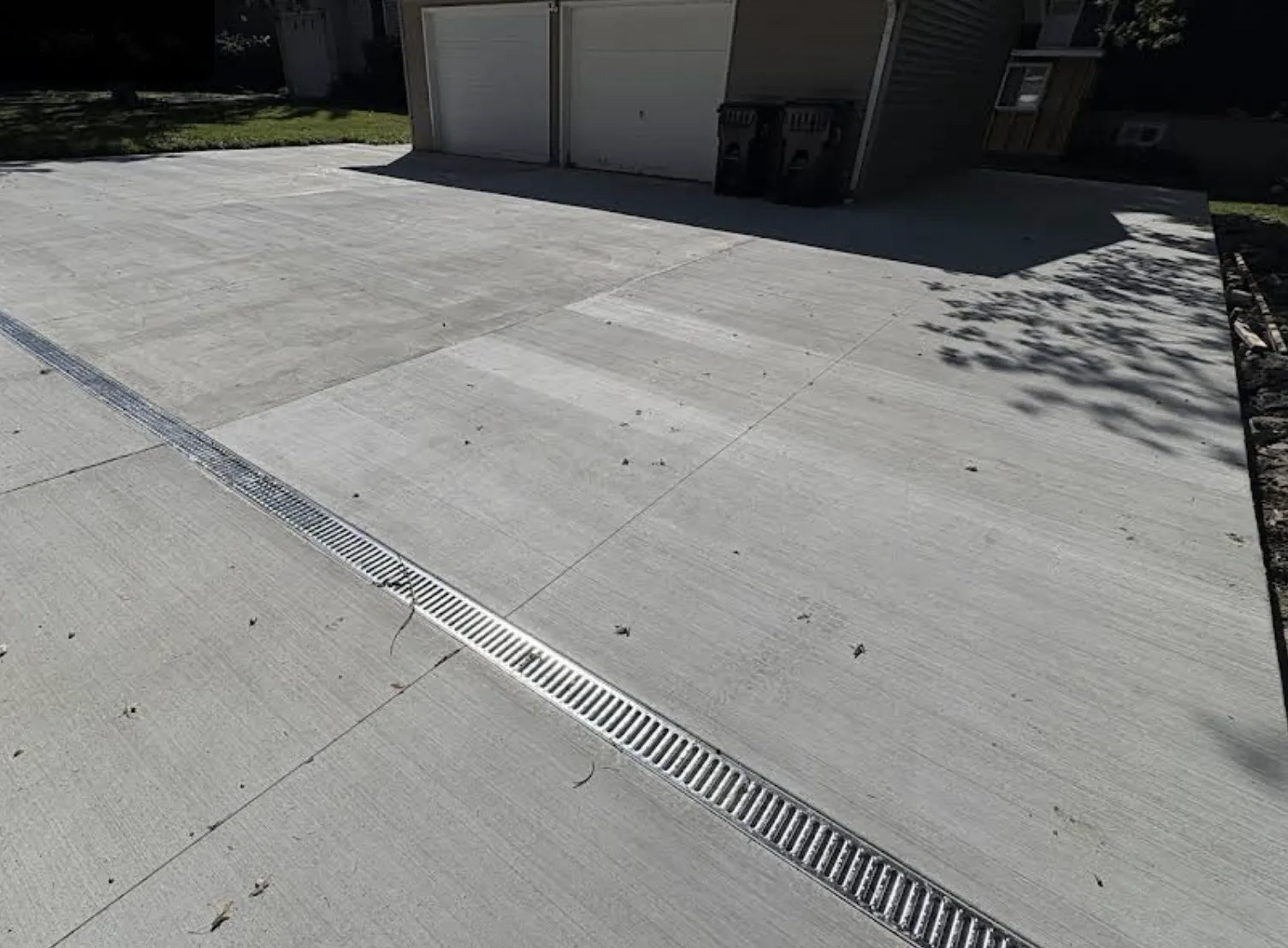

Control joint placement is the final piece most contractors get wrong. Joints must be cut within 6-12 hours of the pour, to a depth of at least 25% of the slab thickness, and spaced no further apart than 10-12 feet in each direction. The purpose is to create predetermined "weak points" so the concrete cracks at your joints — where it's invisible — instead of randomly across your surface. We also slope every driveway at a minimum ⅛" per foot pitch away from the garage, preventing the ponding water that accelerates freeze-thaw destruction in our climate.
